Comply with RoHS 6
|
Yes |
|---|---|
|
Control
|
802.3x Flow |
|
Dimensions
|
280 x 125 x 44 mm |
|
Discharge
|
Air Discharge 8KV Contact Discharge 4kV |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Humidity
|
Operating: 0% – 95% RH Storage: 0% – 95% RH |
|
Interfaces
|
16 x 1000Base-T Auto MDI/MDIX |
|
Jumbo Frame
|
10,000 Bytes |
|
MAC Address Table Size
|
8192 |
|
Maximum Forwarding Rate
|
23.81Mpps |
|
Maximum Heat Dissipation
|
34.3 BTU/h |
|
Maximum Power Consumption
|
10.07W |
|
MTBF
|
1,882,372 hours |
|
Packet Buffer Size
|
512KBytes |
|

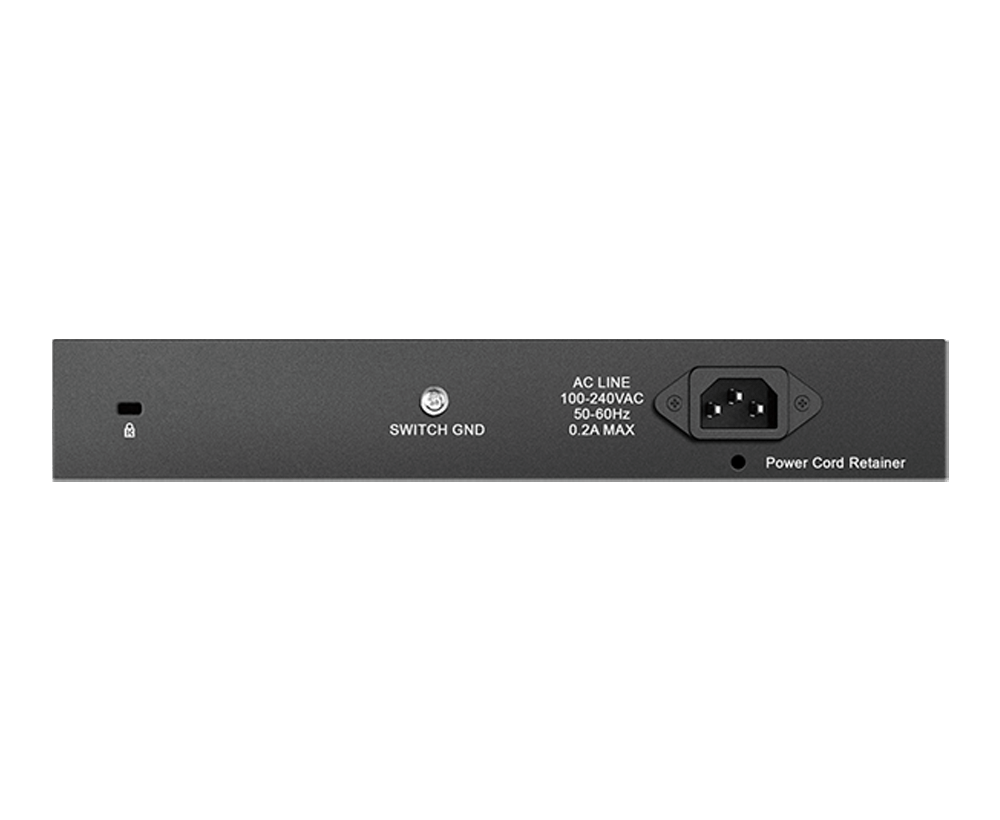

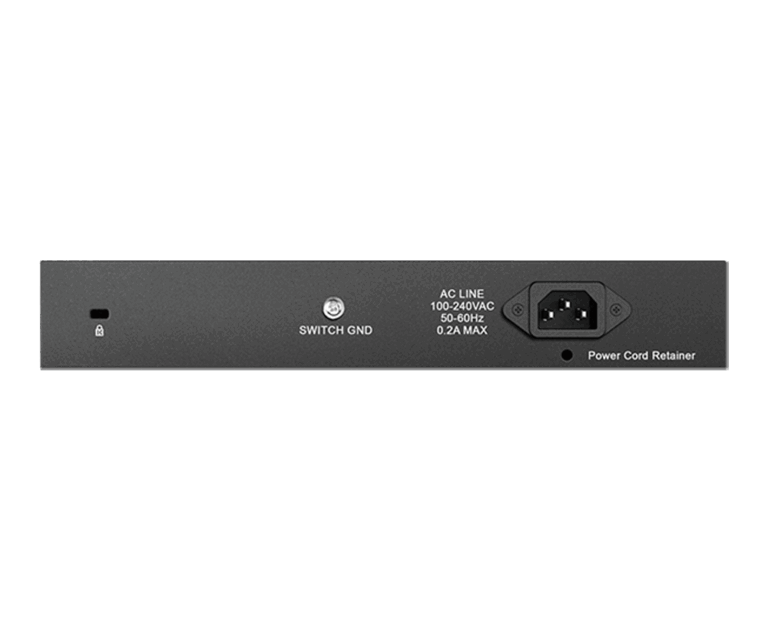

Power Input
|
AC:100 ~ 240 V |
|
Power Saving
|
By Cable Length By Link Status |
|
Protection
|
Surge/Lightning Protection (AC Power Inet) : 1kV Surge/Lightning Protection (All Ethernet Ports) : 1kV |
|
Standby Power Consumption
|
3.02W |
|
Store & Forwarding Forwading
|
Yes |
|
Switching Capacity
|
32 Gbps |
|
Temperature
|
Operating: 0 ~ 40 °C Storage: -10 – 70 ËšC |
|
Weight
|
1.023 kgs |
LAN Switches

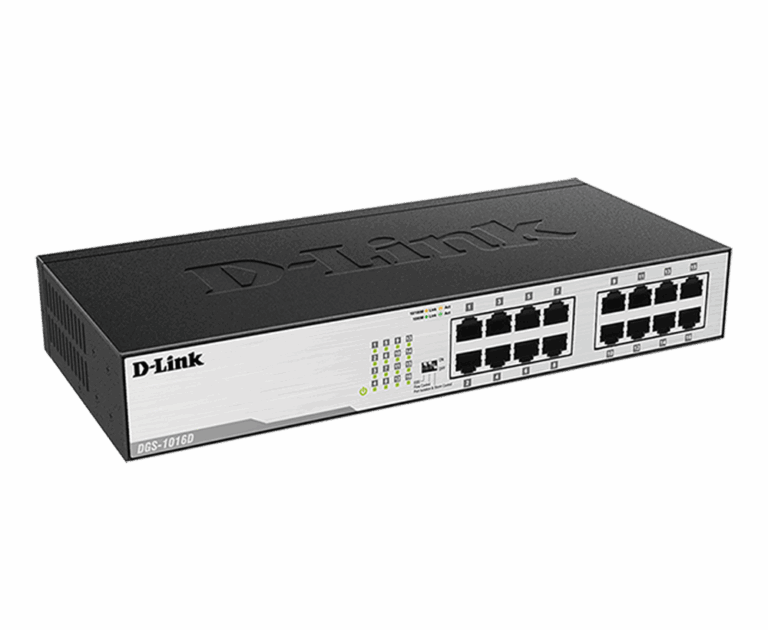

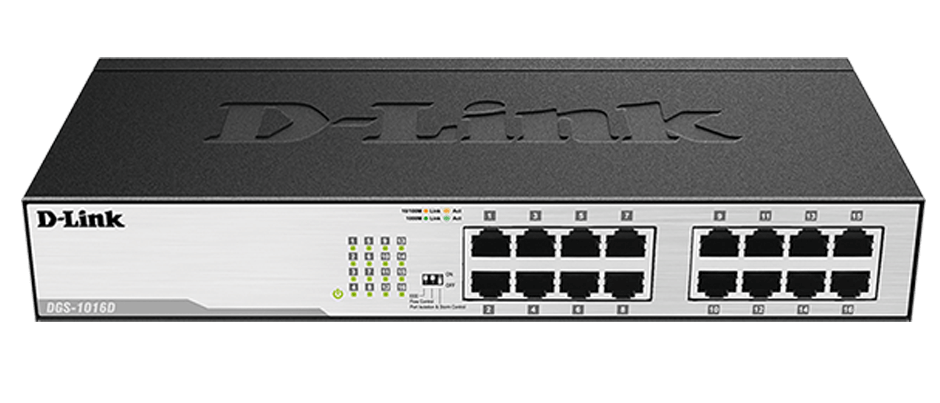

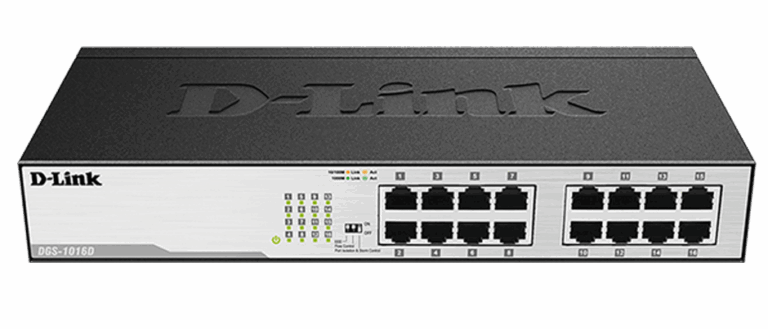

D-Link DGS-1016D 16-Port Copper Gigabit Switch
- Cable diagnostics troubleshooting
- 3-pin front panel DIP switch for real-time toggling Energy-efficient Ethernet (EEE), Flow Control, Port Isolation, and Storm Control
- Compact and durable housing, high port count, and fanless design for noise-free operation
