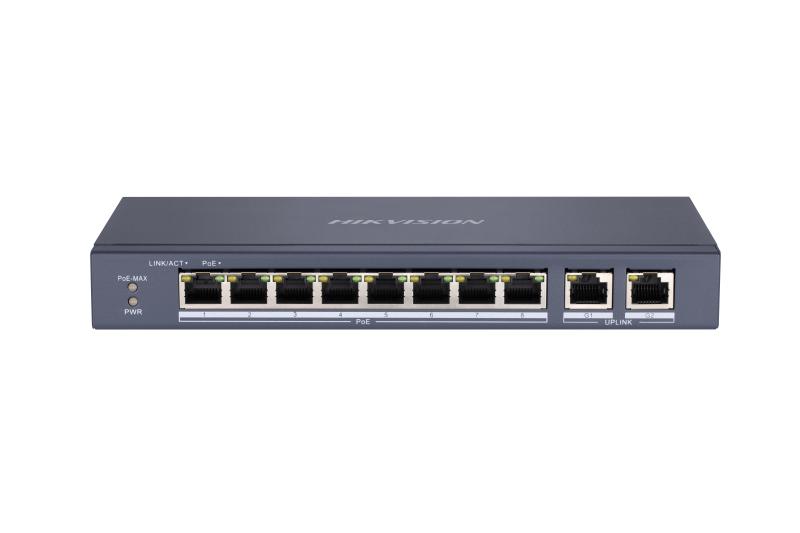

HIKVISION DS-3E0310P-E/M

General

• Shell : Metal material
• Net Weight : 0.555 kg (1.22 lb)
• Gross Weight : 1.20 kg (2.65 lb)
• Dimensions (W × H × D) : 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
• Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature : –40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity : 5% to 95% (no condensation)
• Relative Humidity : 5% to 95% (no condensation)
• Power Supply : 48 VDC, 1.35 A
• Max. Power Consumption : 65 W
• Power Consumption In Idle : 5 W
• Installation Mode : Desk-Mounted,Wall-Mounted
• Surge Protection : 6 KV

Network Parameters

• Ports : 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
• MAC Address Table : 8 K
• Switching Capacity : 5.6 Gbps
• Packet Forwarding Rate : 4.17 Mpps
• Internal Cache : 4 Mbits

PoE Power Supply

• PoE Standard : IEEE 802.3af;IEEE 802.3at
• PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port : PoE Ports 1 to 8
• Max. Port Power : 30 W
• PoE Power Budget : 60 W

Dialing Function

• Long Range : Ports 1 to 8 : up to 300 m.

                            Long range performance may vary depend on camera model or cable condition.

Approval

• EMC : FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3:  2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• Safety : UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry : CE-RoHS (201165EU);

                         WEEE (201219EU);

                         Reach (Regulation (EC) No.19072006)
